Devices and Modules: Other Devices

All images on this page are thumbnails on which you can click to bring up a larger image.

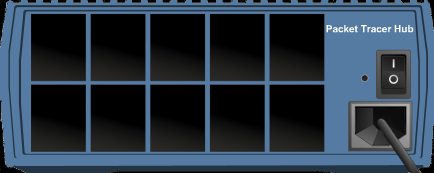

The Hub-PT provides ten slots.

Module Name	Thumbnail	Description
PT-REPEATER-NM-1CE		The PT-REPEATER-NM-1CE features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.
PT-REPEATER-NM-1CFE		The PT-REPEATER-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
PT-REPEATER-NM-1CGE		The PT-REPEATER-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
PT-REPEATER-NM-1FFE		The PT-REPEATER-NM-1FFE Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet.
PT-REPEATER-NM-1FGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-REPEATER-NM-1FGE) provides Gigabit Ethernet optical connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.
PT-REPEATER-NM-COVER		The cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.

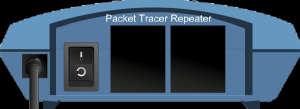

The Repeater-PT provides two slots.

The Repeater-PT supports the same modules that the Hub-PT supports.

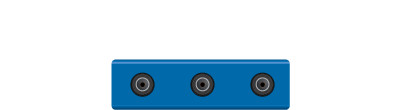

The CoAxialSplitter-PT does not support modules.

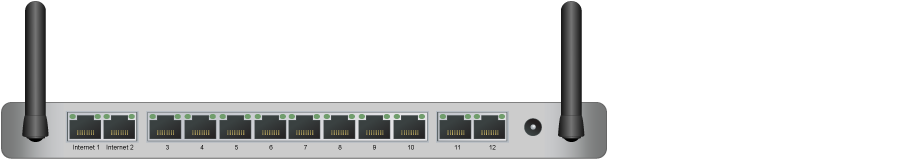

The Cisco Packet Tracer Meraki is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set.

The Cisco Packet Tracer Light Weight AP Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The LAP-PT Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support.

With the industry’s only enterprise class 4x4 MIMO, three-spatial-stream access points that support the IEEE’s new 802.11ac specification, the Cisco Aironet 3700 Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support.

The Cisco Packet Tracer Wireless Controller enables systemwide wireless functions in small to medium-sized enterprises and branch offices. Designed for 802.11n and 802.11ac performance, Cisco Packet Tracer Wireless Controllers are entry-level controllers that provide real-time communications between Cisco Aironet access points to simplify the deployment and operation of wireless networks.

The Cisco 3504 Wireless Controller is a compact, highly scalable, service-rich, resilient, and industry's first Multigigabit Ethernet platform that enables next-generation wireless networks for small to medium-sized enterprises and branch office deployments.

The Cisco 2500 Series Wireless Controller enables systemwide wireless functions in small to medium-sized enterprises and branch offices. Designed for 802.11n and 802.11ac performance, Cisco 2500 Series Wireless Controllers are entry-level controllers that provide real-time communications between Cisco Aironet access points to simplify the deployment and operation of wireless networks.

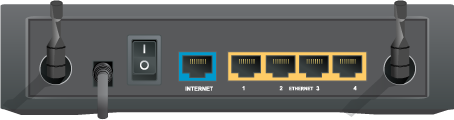

The Cisco Packet Tracer Home Router is a Next-Gen AC Wi-Fi router with Tri-Band technology.

The Home Router does not support modules.

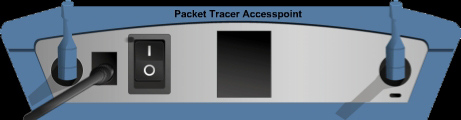

The AccessPoint-PT has a built-in antenna and provides one slot.

The AccessPoint-PT supports the same modules that the Hub-PT supports.

The AccessPoint-PT-A has a built-in antenna and provides one slot.

The AccessPoint-PT-A supports the same modules that the Hub-PT supports.

The AccessPoint-PT-AC has a built-in antenna and provides one slot.

The AccessPoint-PT-AC supports the same modules that the Hub-PT supports.

The AccessPoint-PT-N has a built-in antenna and provides one slot.

The AccessPoint-PT-N supports the same modules that the Hub-PT supports.

The WRT300N wireless router has a built-in antenna and provides four fixed 10/100 (100BASE-TX) Ethernet ports and one fixed Internet port (also 100BASE-TX, typically for connection to cable and DSL modems).

The WRT300N wireless router does not support modules.

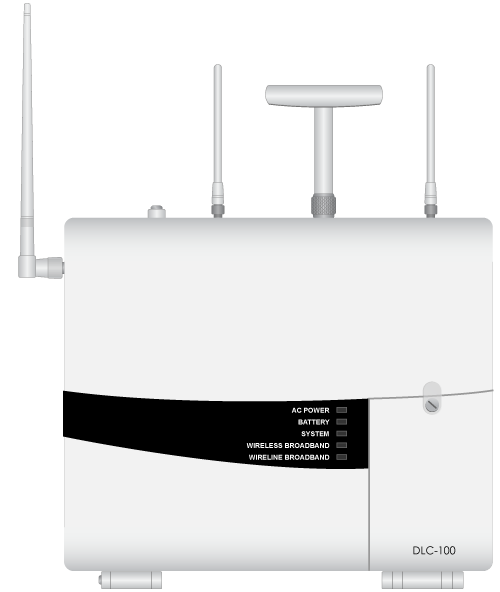

A wireless-based home security and automation device that provides applications life-cycle management system, which allows customers to monitor, protect and manage their homes using a smartphone, tablet or PC.

The DLC100 does not support modules.

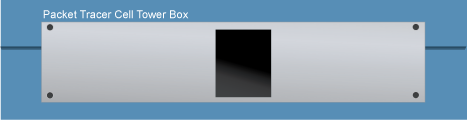

The Cell Tower has one slot. It supports coaxial and 3G/4G module.

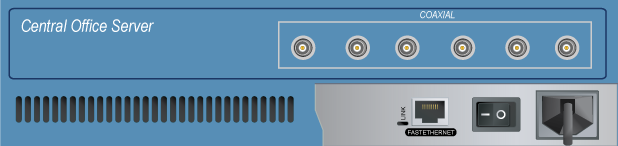

Central Office Server

The Central Office Server has six built-in coaxial ports and one FastEthernet port.

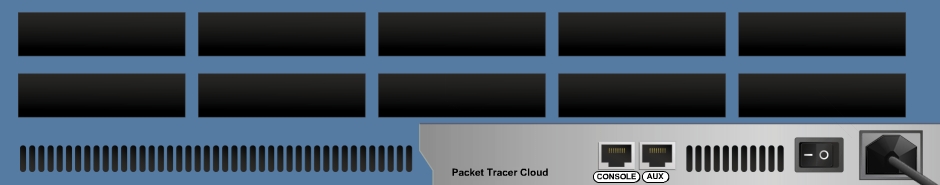

Although a cloud is not a single device, Packet Tracer gives you access to a representation of a cloud. It provides ten slots, a console port, and an auxiliary port.

Device Name	Thumbnail	Description
PT-CLOUD-NM-1AM		The PT-CLOUD-NM-1AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-1AM uses one port for connection to a standard telephone line, and the other port can be connected to a basic analog telephone for use when the modem is idle.
PT-CLOUD-NM-1CE		The PT-CLOUD-NM-1CE features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.
PT-CLOUD-NM-1CFE		The PT-CLOUD-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
PT-CLOUD-NM-1CGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-CLOUD-NM-1CGE) provides Gigabit Ethernet copper connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.
PT-CLOUD-NM-1CX		The PT-CLOUD-NM-1CX card features a single coaxial connector, which is used for a cable modem service connection.
PT-CLOUD-NM-1FFE		The PT-CLOUD-NM-1FFE Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet.
PT-CLOUD-NM-1FGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-CLOUD-NM-1FGE) provides Gigabit Ethernet optical connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.
PT-CLOUD-NM-1S		The PT-CLOUD-NM-1S provides a single port serial connection to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.

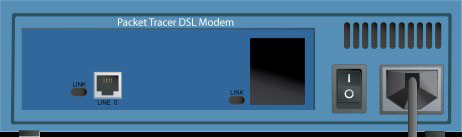

The DSL-Modem-PT provides one slot.

Device Name	Thumbnail	Description
PT-MODEM-NM-1CE		The PT-MODEM-NM-1CE features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.
PT-MODEM-NM-1CFE		The PT-MODEM-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
PT-MODEM-NM-1CGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-MODEM-NM-1CGE) provides Gigabit Ethernet copper connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.

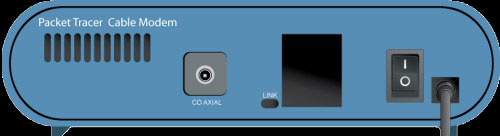

The Cable-Modem-PT provides one slot.

The Cable-Modem-PT supports the same modules that the DSL-Modem-PT supports.

The ASA 5505 is from Cisco's line of network security devices.

It is a fixed-configuration that provides Ethernet connectivity. It has one available slot but it is currently not supported in this version of Packet Tracer.

The ASA 5506 is from Cisco's line of network security devices.

It is a fixed-configuration that provides GigabitEthernet connectivity.

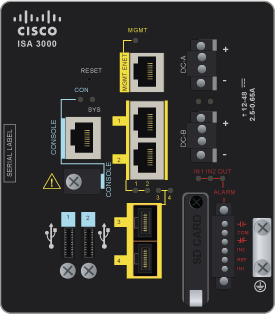

The ISA-3000 is the ideal ruggedized firewall to segment industrial networks, protect OT assets from potential threats, and build compliance so that you can capture the benefits of your industrial digitization efforts.

Power Distribution Device

The Power Distribution Device supplies power to other devices.

It is a simple model and there is no configuration. It takes up 1RU and can be moved around only within the rack view. This device is created automatically and cannot be created by the user.
