Devices and Modules: Routers

All images on this page are thumbnails on which you can click to bring up a larger image.

The Cisco 4000 Series Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, the routers specifically address the growing need for application-aware networking in distributed enterprise sites.

Module Name	Thumbnails	Description
NIM-2T		The NIM-2T is a 2 port multi-protocol Synchronous Serial NIM.
NIM-Cover		The NIM cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
NIM-ES2-4		The NIM-ES2-4 provides four switching ports.
GLC-GE-100FX		100BASE-FX SFP module for Gigabit Ethernet ports, 1310 nm wavelength, 2 km over MMF.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

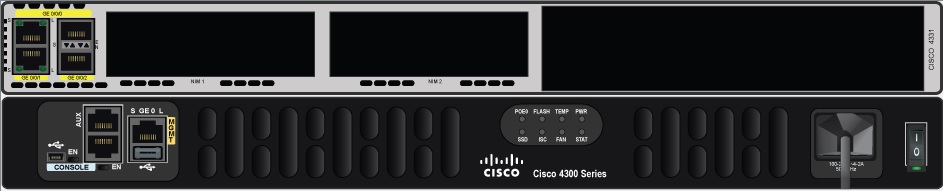

The Cisco router ISR4331 provides “Application Experience” software bundle with advanced routing and network monitoring services.

Module Name	Thumbnails	Description
NIM-2T		The NIM-2T is a 2 port multi-protocol Synchronous Serial NIM.
NIM-Cover		The NIM cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
NIM-ES2-4		The NIM-ES2-4 provides four switching ports.
GLC-GE-100FX		100BASE-FX SFP module for Gigabit Ethernet ports, 1310 nm wavelength, 2 km over MMF.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
GLC-T		The 1000BASE-T SFP operates on standard Category 5 unshielded twisted-pair copper cabling of link lengths up to 100 m (328 ft). Cisco 1000BASE-T SFP modules support 10/100/1000 auto negotiation and Auto MDI/MDIX.
GLC-TE		The 1000BASE-T SFP operates on standard Category 5 unshielded twisted-pair copper cabling of link lengths up to 100 m (328 ft). Cisco 1000BASE-TE SFP modules support 10/100/1000 auto negotiation and Auto MDI/MDIX. Cisco 1000BASE-TE SFP modules can work in a wide range of temperature environment without any damage.

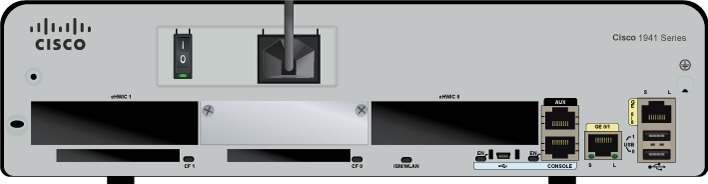

The Cisco 1941 Integrated Services Router (ISR) provides 2 integrated 10/100/1000 Ethernet ports, 2 WAN Interface Card (WIC) slots and 1 Internal Services Module slot.

Module Name	Thumbnails	Description
HWIC-1GE-SFP		The HWIC-1GE-SFP is a single-wide HWIC with one Small Form-Factor Pluggable (SFP) slot. The SFP slot can be populated with Cisco copper and optical Gigabit Ethernet SFPs to provide 1-port Gigabit Ethernet connectivity on all Cisco Integrated Services Routers.
HWIC-2T		The HWIC-2T is a Cisco 2-Port Serial High-Speed WAN Interface Card, providing 2 serial ports.
HWIC-4ESW		The HWIC-4ESW provides four switching ports.
HWIC-8A		The HWIC-8A provides up to eight asynchronous EIA-232 connections to console ports.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

The Cisco 2901 Integrated Services Router (ISR) provides 2 integrated 10/100/1000 Ethernet ports, 4 enhanced high-speed WAN interface card (WIC) slots, 2 onboard digital signal processor (DSP) slots and 1 onboard Internal Service Module for application services.

Module Name	Thumbnails	Description
HWIC-1GE-SFP		The HWIC-1GE-SFP is a single-wide HWIC with one Small Form-Factor Pluggable (SFP) slot. The SFP slot can be populated with Cisco copper and optical Gigabit Ethernet SFPs to provide 1-port Gigabit Ethernet connectivity on all Cisco Integrated Services Routers.
HWIC-2T		The HWIC-2T is a Cisco 2-Port Serial High-Speed WAN Interface Card, providing 2 serial ports.
HWIC-4ESW		The HWIC-4ESW provides four switching ports.
HWIC-8A		The HWIC-8A provides up to eight asynchronous EIA-232 connections to console ports.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

Module Name	Thumbnails	Description
HWIC-1GE-SFP		The HWIC-1GE-SFP is a single-wide HWIC with one Small Form-Factor Pluggable (SFP) slot. The SFP slot can be populated with Cisco copper and optical Gigabit Ethernet SFPs to provide 1-port Gigabit Ethernet connectivity on all Cisco Integrated Services Routers.
HWIC-2T		The HWIC-2T is a Cisco 2-Port Serial High-Speed WAN Interface Card, providing 2 serial ports.
HWIC-4ESW		The HWIC-4ESW provides four switching ports.
HWIC-8A		The HWIC-8A provides up to eight asynchronous EIA-232 connections to console ports.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

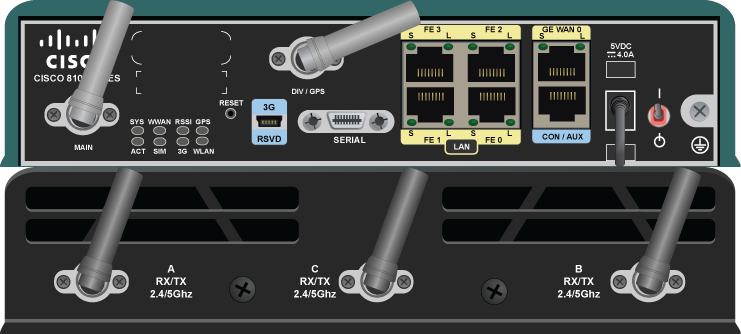

The Cisco 819 Integrated Services Router (ISR) supports machine-to-machine (M2M) applications that can enable enterprises to use 3G wireless WAN network services.

829 Industrial Integrated Services Routers provide highly secure, reliable, and easy-to-manage 3G/4G LTE WAN cellular and Wireless LAN connectivity for mobile environments.

Module Name	Thumbnails	Description
GLC-T		The 1000BASE-T SFP operates on standard Category 5 unshielded twisted-pair copper cabling of link lengths up to 100 m (328 ft). Cisco 1000BASE-T SFP modules support 10/100/1000 auto negotiation and Auto MDI/MDIX.

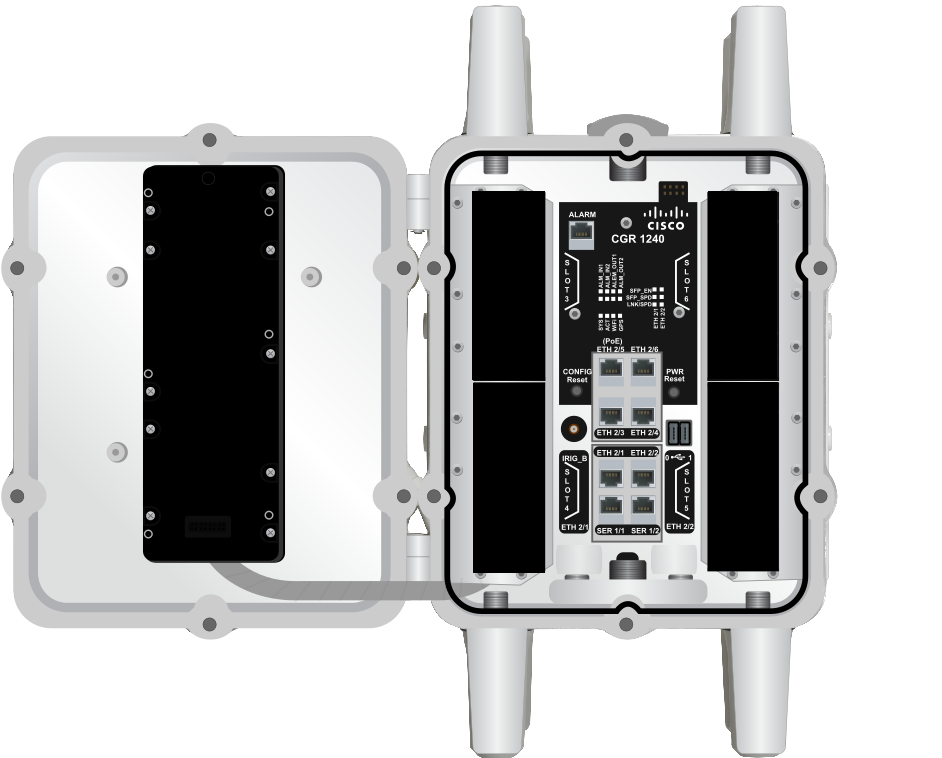

The CGR 1240 is a ruggedized communication platform, designed for use in Field Area Network (FAN) power distribution grids that require outdoor, pole-mounted routers. The FAN is a distribution system in which power generation and transmission are linked to the power consumers.

Module Name	Thumbnails	Description
1240-Cover		The 1240 cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.

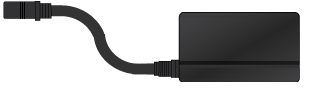

ROUTER-ADAPTER		The router power adapter.
GLC-FE-100FX-RGD		The 100BASE-FX SFP operates in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

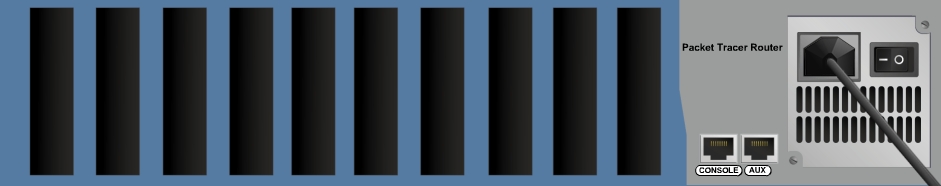

The Router-PT generic router provides ten slots, one console port, and one auxiliary port.

Module Name	Thumbnail	Description
PT-ROUTER-NM-1AM		The PT-ROUTER-NM-1AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-1AM uses one port for connection to a standard telephone line, and the other port can be connected to a basic analog telephone for use when the modem is idle.
PT-ROUTER-NM-1CE		The PT-ROUTER-NM-1CE features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.
PT-ROUTER-NM-1CFE		The PT-ROUTER-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
PT-ROUTER-NM-1CGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-ROUTER-NM-1CGE) provides Gigabit Ethernet copper connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.
PT-ROUTER-NM-1FFE		The PT-ROUTER-NM-1FFE Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet.
PT-ROUTER-NM-1FGE		The single-port Cisco Gigabit Ethernet Network Module (part number PT-ROUTER-NM-1FGE) provides Gigabit Ethernet copper connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC.
PT-ROUTER-NM-1S		The PT-ROUTER-NM-1S provides a single port serial connection to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.
PT-ROUTER-NM-1SS		The 2-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed media dial support in a single chassis. Applications for asynchronous/synchronous support include: low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
PT-ROUTER-NM-COVER		The cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.

The Cisco 1841 Integrated Services Router provides two fixed 10/100 (100BASE-TX) Ethernet ports, two integrated High-Speed WAN Interface Card (HWIC) slots that are compatible with WAN Interface Card (WICs) and Voice/WAN Interface Cards (VWICs), and one internal Advanced Integration Module (AIM) slot.

Module Name	Thumbnails	Description
HWIC-1GE-SFP		The HWIC-1GE-SFP is a single-wide HWIC with one Small Form-Factor Pluggable (SFP) slot. The SFP slot can be populated with Cisco copper and optical Gigabit Ethernet SFPs to provide 1-port Gigabit Ethernet connectivity on all Cisco Integrated Services Routers.
HWIC-2T		The HWIC-2T is a Cisco 2-Port Serial High-Speed WAN Interface Card, providing 2 serial ports.
HWIC-4ESW		The HWIC-4ESW provides four switching ports.
HWIC-8A		The HWIC-8A provides up to eight asynchronous EIA-232 connections to console ports.
HWIC-AP-AG-B		The HWIC-AP-AG-B module is a High-Speed WAN Interface Card providing integrated Access Point functionality in the Cisco 1800 (Modular), Cisco 2800, and Cisco 3800 Integrated Services Routers. It supports Single Band 802.11b/g or Dual Band 802.11a/b/g radios.
WIC-1AM		The WIC-1AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-1AM uses one port for connection to a standard telephone line, and the other port can be connected to a basic analog telephone for use when the modem is idle.
WIC-1ENET		The WIC-1ENET is a single-port 10 Mbps Ethernet interface card, for use with 10BASE-T Ethernet LANs.
WIC-1T		The WIC-1T provides a single port serial connection to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.
WIC-2AM		The WIC-2AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-2AM has two modem ports to allow multiple data communication connections.
WIC-2T		The 2-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed media dial support in a single chassis. Applications for asynchronous/synchronous support include: low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.

The Cisco 2620XM Multiservice Router provides a one-network module slot platform with one fixed 10/100 (100BASE-TX) Ethernet port, two integrated WAN Interface Card (WIC) slots, and one Advanced Integration Module (AIM) slot.

Module Name	Thumbnails	Description

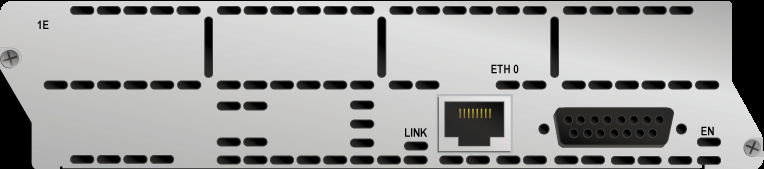

NM-1E		The NM-1E features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.

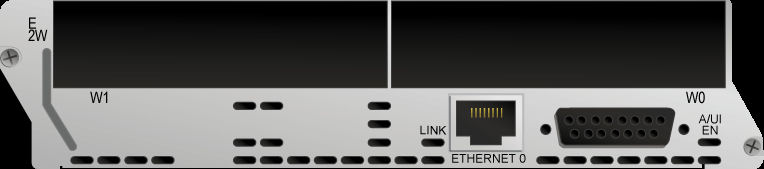

NM-1E2W		The NM-1E2W provides a single Ethernet port with two WIC slots that can support a single Ethernet LAN, together with two serial/ISDN backhaul lines, and still allow multiple serial or ISDN in the same chassis.

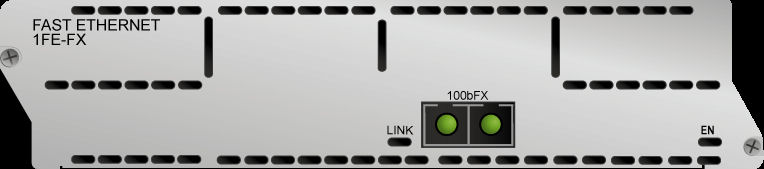

NM-1FE-FX		The NM-1FE-FX Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet.

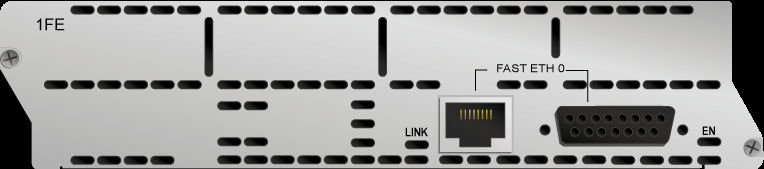

NM-1FE-TX		The NM-1FE-TX Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.

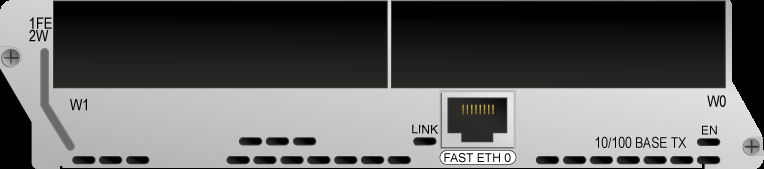

NM-1FE2W		The NM-1FE2W Module provides one Fast-Ethernet interface for use with copper media, in addition to two Wan Interface Card expansion slots. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
NM-2E2W		The NM-2E2W provides two Ethernet ports with two WIC slots that can support two Ethernet LANs, together with two serial/ISDN backhaul lines, and still allow multiple serial or ISDN in the same chassis.
NM-2FE2W		The NM-2FE2W Module provides two Fast-Ethernet interfaces for use with copper media, in addition to two Wan Interface Card expansion slots. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards.

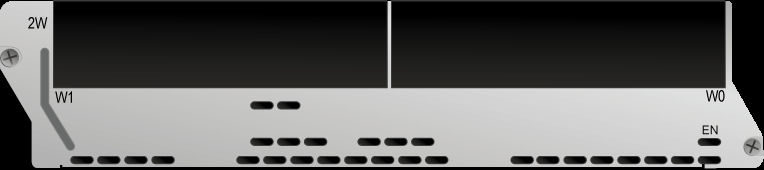

NM-2W		The NM-2W Module provides two WAN Interface Card expansion slots. It can be used with a broad range of interface cards, supporting a diverse array of physical media and network protocols.

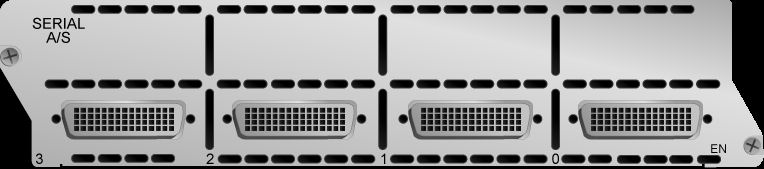

NM-4A/S		The 4-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed-media dial support in a single chassis. Applications for Asynchronous/Synchronous support include: Low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
NM-4E		The NM-4E features four Ethernet ports for multifunction solutions that require higher-density Ethernet than the mixed-media network modules.

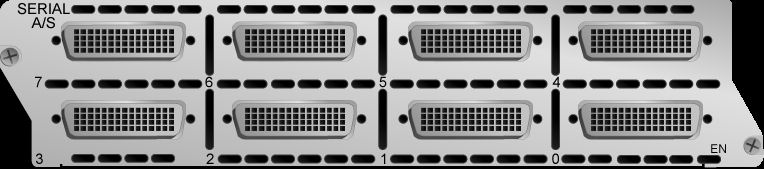

NM-8A/S		The 8-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed-media dial support in a single chassis. Applications for Asynchronous/Synchronous support include: Low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.

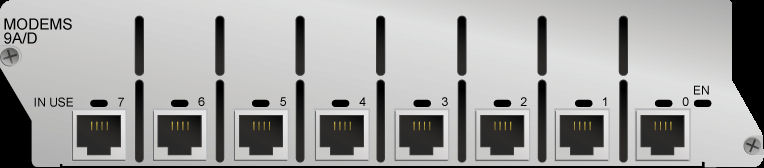

NM-8AM		The NM-8AM Integrated V.92 analog modem network module provides cost-effective analog telephone service connectivity for lower-density remote-access service (RAS), dial-out and fax-out modem access, asynchronous dial-on-demand routing (DDR) plus dial backup, and remote router management. Both the 8-port and 16-port versions use RJ-11 jacks to connect the integrated modems to basic analog telephone lines on the public switched telephone network (PSTN) or private telephony systems.
NM-Cover		The NM cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
WIC-1AM		The WIC-1AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-1AM uses one port for connection to a standard telephone line, and the other port can be connected to a basic analog telephone for use when the modem is idle.
WIC-1T		The WIC-1T provides a single port serial connection to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.
WIC-2AM		The WIC-2AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-2AM has two modem ports to allow multiple data communication connections.
WIC-2T		The 2-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed media dial support in a single chassis. Applications for asynchronous/synchronous support include: low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.

The Cisco 2621XM Multiservice Router provides a one-network module slot platform with two fixed 10/100 (100BASE-TX) Ethernet ports, two integrated WAN Interface Card (WIC) slots, and one Advanced Integration Module (AIM) slot.

The 2621XM supports the same modules that the 2620XM supports.

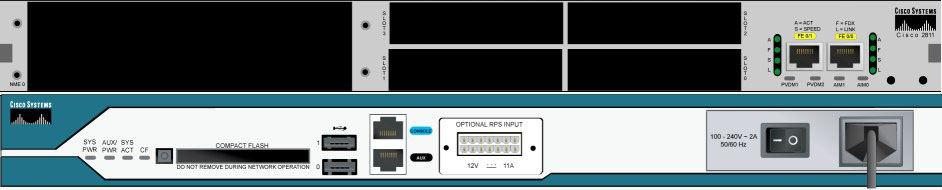

The Cisco 2811 Integrated Services Router provides one Enhanced Network-Module slot with two fixed 10/100 (100BASE-TX) Ethernet ports, four integrated High-Speed WAN Interface Card (HWIC) slots that are compatible with WAN Interface Card (WICs), Voice Interface Cards (VICs) and Voice/WAN Interface Cards (VWICs), and dual Advanced Integration Module (AIM) slots.

Module Name	Thumbnails	Description
NM-1E		The NM-1E features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports.
NM-1E2W		The NM-1E2W provides a single Ethernet port with two WIC slots that can support a single Ethernet LAN, together with two serial/ISDN backhaul lines, and still allow multiple serial or ISDN in the same chassis.
NM-1FE-FX		The NM-1FE-FX Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet.
NM-1FE-TX		The NM-1FE-TX Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.
NM-1FE2W		The NM-1FE2W Module provides one Fast-Ethernet interface for use with copper media, in addition to two Wan Interface Card expansion slots. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment.

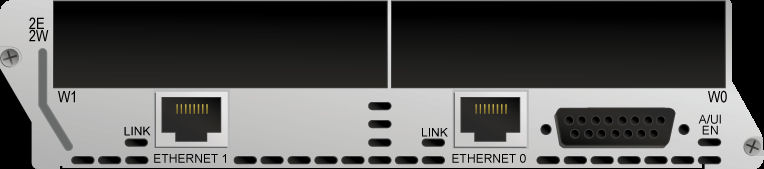

NM-2E2W		The NM-2E2W provides two Ethernet ports with two WIC slots that can support two Ethernet LANs, together with two serial/ISDN backhaul lines, and still allow multiple serial or ISDN in the same chassis.

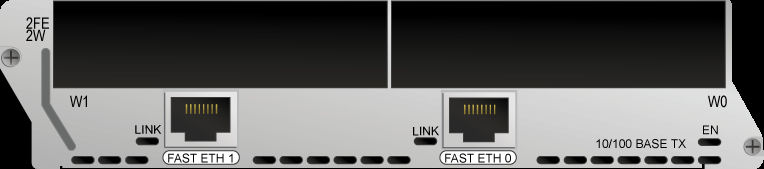

NM-2FE2W		The NM-2FE2W Module provides two Fast-Ethernet interfaces for use with copper media, in addition to two Wan Interface Card expansion slots. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards.
NM-2W		The NM-2W Module provides two WAN Interface Card expansion slots. It can be used with a broad range of interface cards, supporting a diverse array of physical media and network protocols.
NM-4A/S		The 4-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed-media dial support in a single chassis. Applications for Asynchronous/Synchronous support include: Low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.

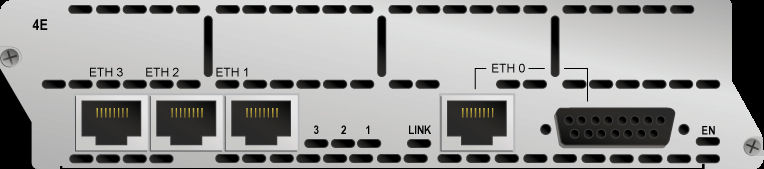

NM-4E		The NM-4E features four Ethernet ports for multifunction solutions that require higher-density Ethernet than the mixed-media network modules.
NM-8A/S		The 8-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed-media dial support in a single chassis. Applications for Asynchronous/Synchronous support include: Low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
NM-8AM		The NM-8AM Integrated V.92 analog modem network module provides cost-effective analog telephone service connectivity for lower-density remote-access service (RAS), dial-out and fax-out modem access, asynchronous dial-on-demand routing (DDR) plus dial backup, and remote router management. Both the 8-port and 16-port versions use RJ-11 jacks to connect the integrated modems to basic analog telephone lines on the public switched telephone network (PSTN) or private telephony systems.
NM-Cover		The NM cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
NM-ESW-161		The NM-ESW-161 provides 16 switching ports.
HWIC-1GE-SFP		The HWIC-1GE-SFP is a single-wide HWIC with one Small Form-Factor Pluggable (SFP) slot. The SFP slot can be populated with Cisco copper and optical Gigabit Ethernet SFPs to provide 1-port Gigabit Ethernet connectivity on all Cisco Integrated Services Routers.
HWIC-2T		The HWIC-2T is a Cisco 2-Port Serial High-Speed WAN Interface Card, providing 2 serial ports.
HWIC-4ESW		The HWIC-4ESW provides four switching ports.
HWIC-8A		The HWIC-8A provides up to eight asynchronous EIA-232 connections to console ports.
HWIC-AP-AG-B		The HWIC-AP-AG-B module is a High-Speed WAN Interface Card providing integrated Access Point functionality in the Cisco 1800 (Modular), Cisco 2800, and Cisco 3800 Integrated Services Routers. It supports Single Band 802.11b/g or Dual Band 802.11a/b/g radios.
WIC-1AM		The WIC-1AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-1AM uses one port for connection to a standard telephone line, and the other port can be connected to a basic analog telephone for use when the modem is idle.
WIC-1ENET		The WIC-1ENET is a single-port 10 Mbps Ethernet interface card, for use with 10BASE-T Ethernet LANs.
WIC-1T		The WIC-1T provides a single port serial connection to remote sites or legacy serial network devices such as Synchronous Data Link Control (SDLC) concentrators, alarm systems, and packet over SONET (POS) devices.
WIC-2AM		The WIC-2AM card features dual RJ-11 connectors, which are used for basic telephone service connections. The WIC-2AM has two modem ports to allow multiple data communication connections.
WIC-2T		The 2-port asynchronous/synchronous serial network module provides flexible multi-protocol support, with each port individually configurable in synchronous or asynchronous mode, offering mixed media dial support in a single chassis. Applications for asynchronous/synchronous support include: low speed WAN aggregation (up to 128 Kbps), dial-up modem support, Async or Sync connections to management ports of other equipment, and transport of legacy protocols such as Bi-sync and SDLC.
WIC-Cover		The WIC cover plate provides protection for the internal electronic components. It also helps maintain adequate cooling by normalizing airflow.
GLC-LH-SMD		The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers.
