Devices and Modules: Switches
Devices and Modules: Switches
| All images on this page are thumbnails on which you can click to bring up a larger image. |
|---|
Switch: 2960-24TT
The Cisco Catalyst 2960-24TT is a member of the Catalyst 2960 Series Intelligent Ethernet Switch family. It is a fixed-configuration, standalone switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for mid-sized networks.
It does not support add-in modules.
Switch: Switch-PT
The Switch-PT generic switch provides ten slots, one console port, and one auxiliary port.
Module Name |
Thumbnail |
Description |
|---|---|---|
| PT-SWITCH-NM-1CE |  |
The PT-SWITCH-NM-1CE features a single Ethernet port that can connect a LAN backbone which can also support either six PRI connections to aggregate ISDN lines, or 24 synchronous/asynchronous ports. |
| PT-SWITCH-NM-1CFE |  |
The PT-SWITCH-NM-1CFE Module provides one Fast-Ethernet interface for use with copper media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. The TX (copper) version supports virtual LAN (VLAN) deployment. |
| PT-SWITCH-NM-1CGE |  |
The single-port Cisco Gigabit Ethernet Network Module (part number PT-SWITCH-NM-1CGE) provides Gigabit Ethernet copper connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC. |
| PT-SWITCH-NM-1FFE |  |
The PT-SWITCH-NM-1FFE Module provides one Fast-Ethernet interface for use with fiber media. Ideal for a wide range of LAN applications, the Fast Ethernet network modules support many internetworking features and standards. Single port network modules offer autosensing 10/100BaseTX or 100BaseFX Ethernet. |
| PT-SWITCH-NM-1FGE |  |
The single-port Cisco Gigabit Ethernet Network Module (part number PT-SWITCH-NM-1FGE) provides Gigabit Ethernet optical connectivity for access routers. The module is supported by the Cisco 2691, Cisco 3660, Cisco 3725, and Cisco 3745 series routers. This network module has one gigabit interface converter (GBIC) slot to carry any standard copper or optical Cisco GBIC. |

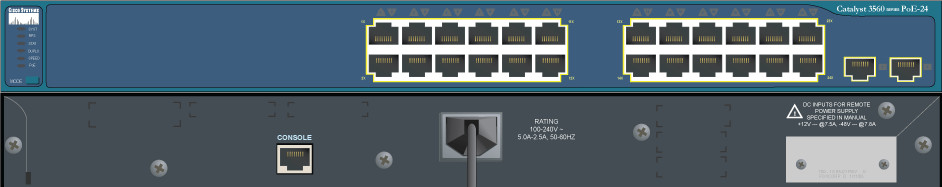

Switch: 3560-24PS
The Cisco Catalyst 3560-24PS is a member of the Catalyst 3560 Series Intelligent Ethernet Switch family. It is a fixed-configuration, standalone switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for mid-sized networks.
It does not support add-in modules.

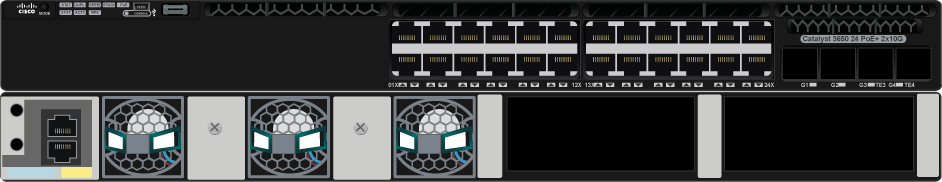

Switch: 3650-24PS
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform.
Module Name |
Thumbnail |
Description |
|---|---|---|
| AC-POWER-SUPPLY |  |
AC Power Supply. |
| POWER-COVER-PLATE |  |
3650 Series Blank Power Supply Slot Cover. |
| GLC-LH-SMD |  |
The 1000BASE-LX/LH SFP operates in Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers. |
| GLC-T |  |
The 1000BASE-T SFP operates on standard Category 5 unshielded twisted-pair copper cabling of link lengths up to 100 m (328 ft). Cisco 1000BASE-T SFP modules support 10/100/1000 auto negotiation and Auto MDI/MDIX. |

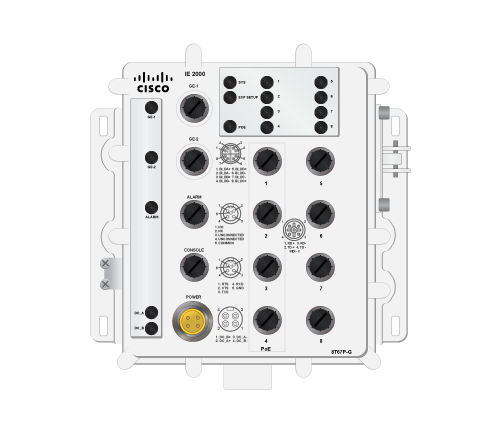

Industrial Switch: IE2000
Cisco Industrial Ethernet 2000 (IE 2000) Series Switches extend the proven Cisco Catalyst technologies prevalent in enterprise networks to industrial networks.
It does not support add-in modules.
Bridge-PT
This bridge provides two slots.
The bridge supports the same modules that the Switch-PT supports.
Switch: 2950-24
The Cisco Catalyst 2950-24 is a member of the Cisco Catalyst 2950 series switch family. It is a standalone, fixed-configuration, managed 10/100 switch providing user connectivity for small- to mid-sized networks.
It does not support add-in modules.
Switch: 2950T-24
The Cisco Catalyst 2950T-24 is a member of the Catalyst 2950 Series Intelligent Ethernet Switch family. It is a fixed-configuration, standalone switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for mid-sized networks.
It does not support add-in modules.
Switch: IE-3400
The IE-3400-8P2S-A is a member of the Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options.
Module Name |
Thumbnail |
Description |
|---|---|---|
| GLC-LX-SM-RGD | |
1000BASE-LX SFP module for Gigabit Ethernet ports, 1310 nm wavelength, 10 km over SMF. |
| GLC-SX-MM-RGD |  |
1000BASE-SX SFP module for Gigabit Ethernet ports, 850 nm wavelength, 500 meters over MMF. |

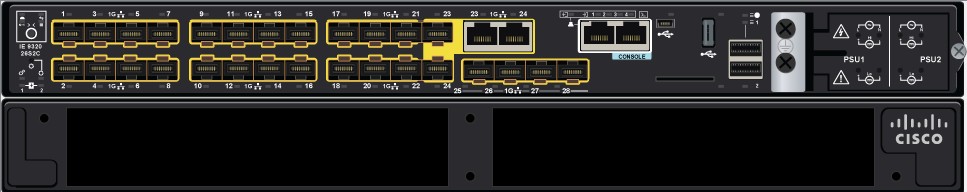

Switch: IE-9320
The IE-9320-26S2C-A is a member of the Cisco Catalyst IE9300 Rugged Series switches. It has 22 downlinks ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45), 4 uplinks ports 100/1000M, and Network Advantage software license.
Module Name |
Thumbnail |
Description |
|---|---|---|
| 9320-AC-POWER-SUPPLY |  |
AC Power Supply. |
| GLC-LX-SM-RGD | |
1000BASE-LX SFP module for Gigabit Ethernet ports, 1310 nm wavelength, 10 km over SMF. |
| GLC-TE | |
The 1000BASE-T SFP operates on standard Category 5 unshielded twisted-pair copper cabling of link lengths up to 100 m (328 ft). Cisco 1000BASE-TE SFP modules support 10/100/1000 auto negotiation and Auto MDI/MDIX. Cisco 1000BASE-TE SFP modules can work in a wide range of temperature environment without any damage. |
