setup()

N/A

Enables CIP on the device.

CIP.setup();

setIdentity(identity)

N/A

Sets identity object of the device.

var identity='{"vendor":939,"type":1,"code":9046,"revision":"1.1","status":"","serial":12346,"name":"pt cip1"}';
CIP.setIdentity(identity);

addObject(classCode, instanceId, data)

N/A

Creates a new object type for the device.

var ptObject = {};
ptObject.data = 0;
CIP.addObject(3000,1,JSON.stringify(ptObject));

removeObject(classCode, instanceId)

N/A

Removes an existing object type from the device.

CIP.removeObject(3000,1);

getObjectAttribute(classCode, instanceId, attributeId)

attribute

Gets object attribute value.

CIP.getObjectAttribute(3000,1,2);

listIdentityAll()

N/A

Finds all CIP enabled devices and lists their identities.

CIP.listIdentityAll();

connect(ip)

bool

Connects to a CIP device.

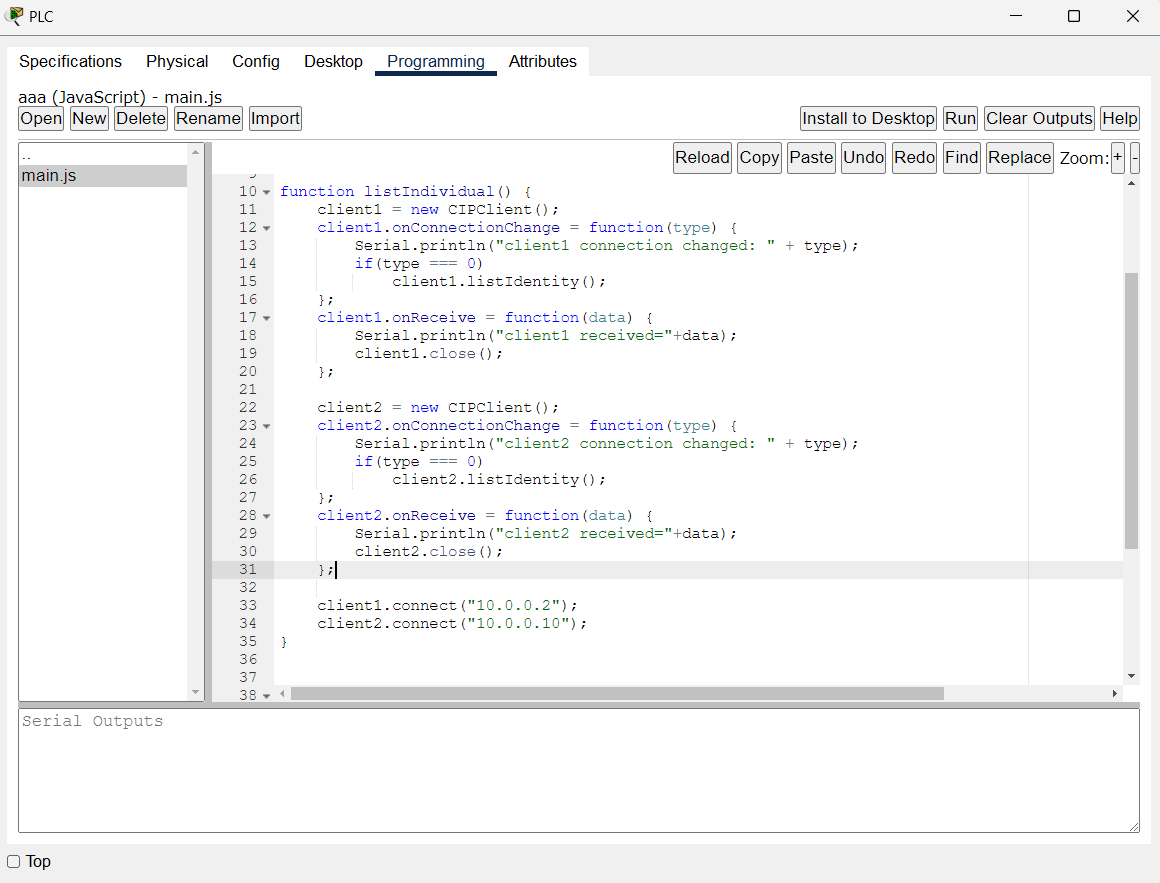

var client = new CIPClient();
client.connect("10.0.0.2");

close()

N/A

Closes a CIP connection.

client.close();

listIdentity()

N/A

Retrieves identity of the device.

client.listIdentity();

getAttributeSingle(classId, instanceId, attributeId)

N/A

Retrieves an attribute of an object based on the class, instance, and attribute.

client.getAttributeSingle(1,1,7);

getAttributesAll(classId, instanceId)

N/A

Retrieves all attributes of an object based on the class and instance.

client.getAttributesAll(245,0);

setAttributesAll(classId, instanceId, data)

N/A

Sets all attributes of an object based on the class and instance.

var ptObject = {};
ptObject.data = 900;
client.setAttributesAll(3000,1,JSON.stringify(ptObject));

forwardOpen(ip, classId, instanceId, timer)

bool

Initiates communication with a device using the IP address, class, and instance.

client.forwardOpen("10.0.0.2", 3000, 1, 5000);

forwardClose()

N/A

Closes the connection opened by forwardOpen.

client.forwardClose();

onConnectionChange(event)

N/A

Sets the callback that is invoked when TCP connection state changes.

client.onConnectionChange = function(event) {};

onReceive(data)

N/A

Sets the callback that is invoked when data is received.

client.onReceive = function(data) {};
