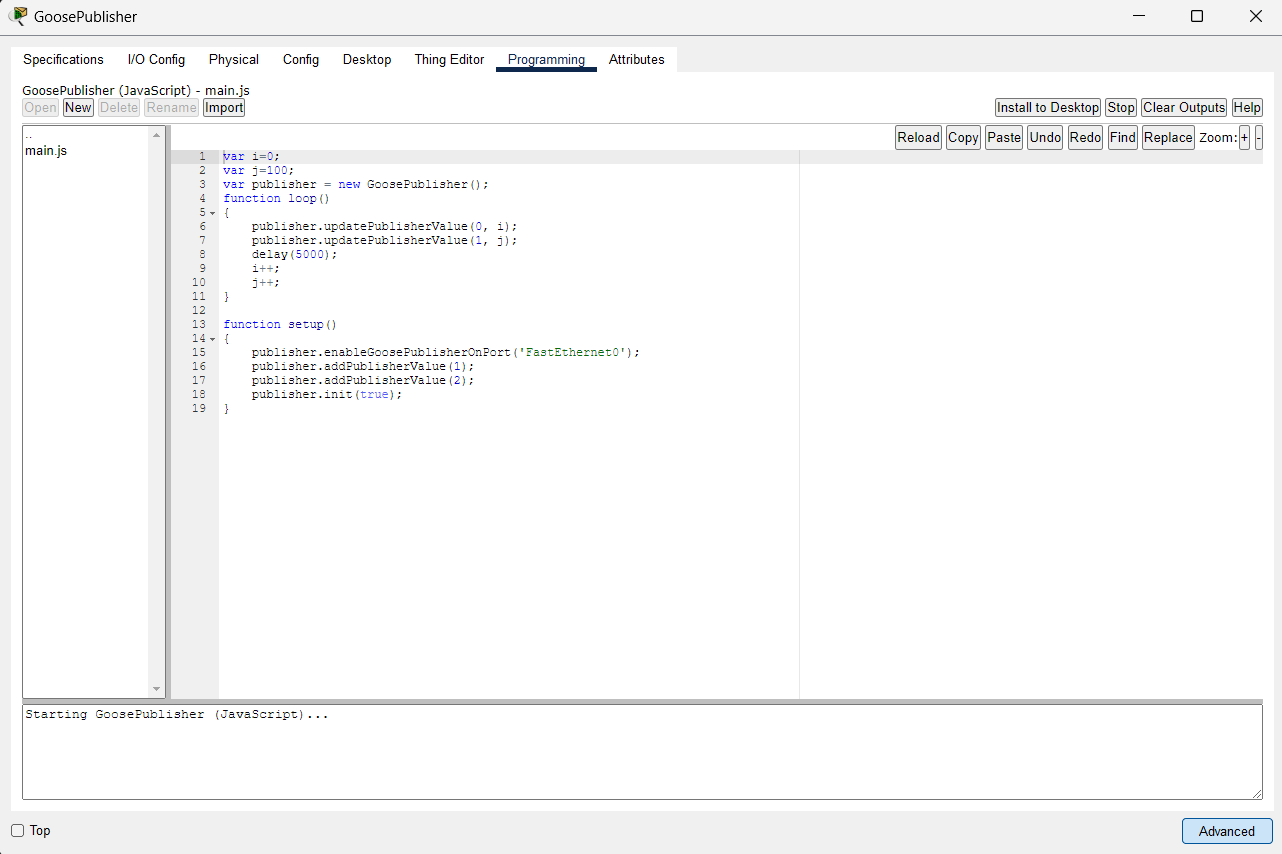

GOOSE Publisher:
enableGoosePublisherOnPort(portName)

bool

Enables GOOSE publisher on portName

var publisher = new GoosePublisher();
publisher.enableGoosePublisherOnPort('FastEthernet0');

GOOSE Publisher:
addPublisherValue(value)

N/A

Adds a value to be published to the subscribers. Up to 8 values can be added to a GOOSE message.

publisher.addPublisherValue(1);

GOOSE Publisher:
updatePublisherValue(index, value)

N/A

Updates the value at the index and publishes to the subscribers.

publisher.updatePublisherValue(0, i);

GOOSE Publisher:
init(true)

N/A

Starts GOOSE publishing

publisher.init(true);

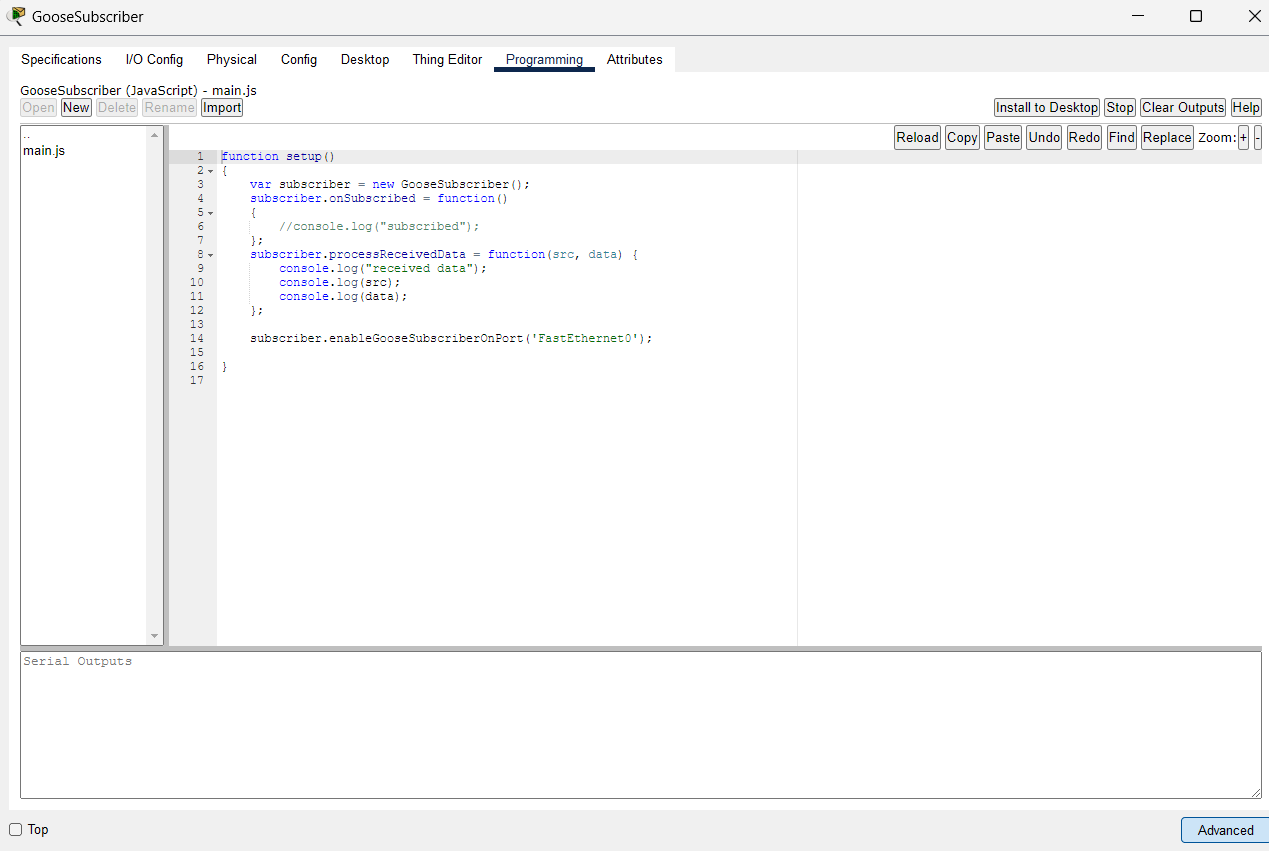

GOOSE Subscriber:
enableGooseSubscriberOnPort(portName)

bool

Enables GOOSE subscriber on portName.

var subscriber = new GooseSubscriber();
subscriber.enableGooseSubscriberOnPort('FastEthernet0');

GOOSE Subscriber:
onSubscribed()

N/A

Sets the callback for when published data are received.

subscriber.onSubscribed = function() {};

GOOSE Subscriber:
processReceivedData(src, data)

N/A

Sets the callback for when published data are received.

subscriber.processReceivedData = function(src, data) {};

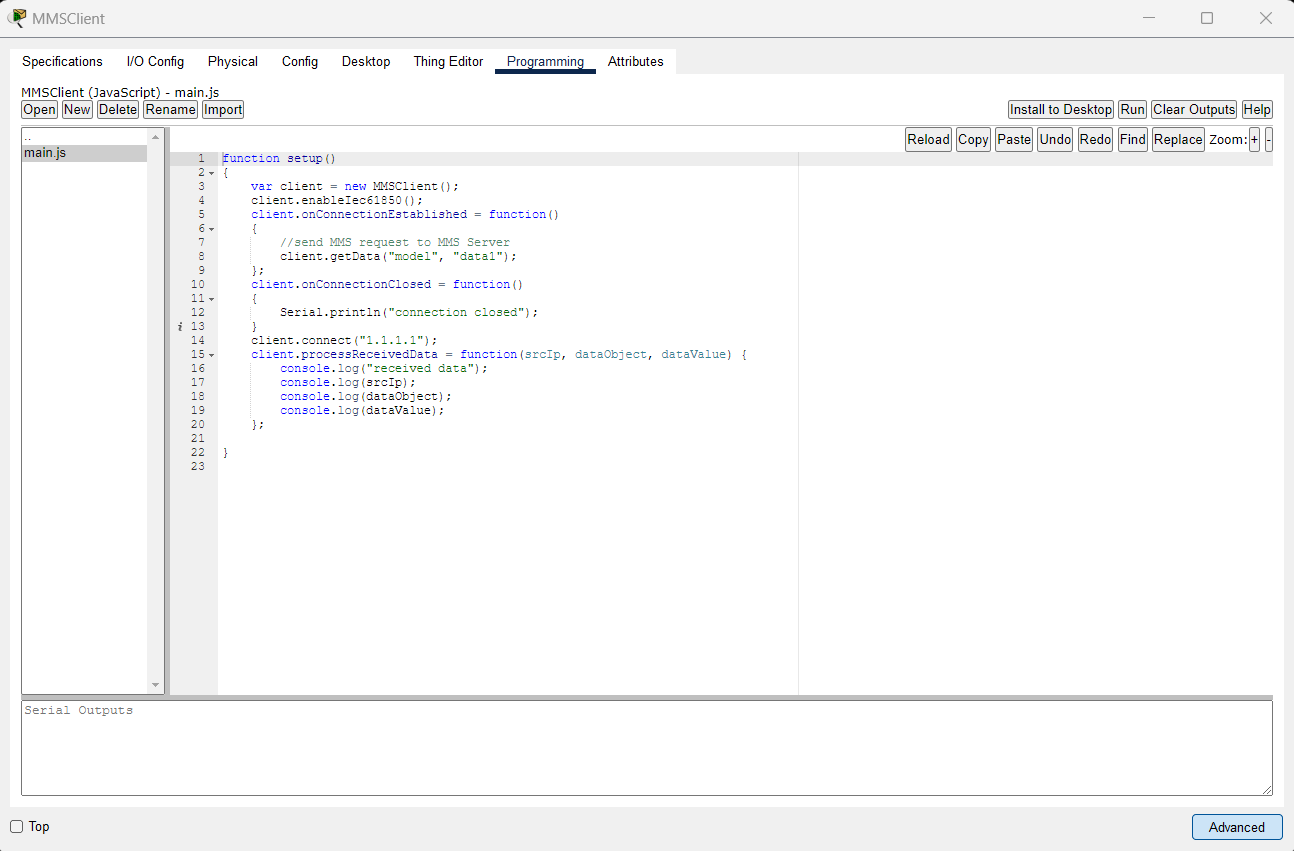

MMS Client:
enableIec61850()

N/A

Enables MMS features on the device.

var client = new MMSClient();
client.enableIec61850();

MMS Client:
connect(ip)

bool

Opens a TCP connection to the server.

client.connect("1.1.1.1");

MMS Client:
disconnect()

N/A

Closes the connection to the server.

client.close();

MMS Client:
getData(modelName, dataName)

N/A

Gets data from the server based on the model name and the data name.

client.getData("model", "data1");

MMS Client:
onConnectionEstablished()

N/A

Sets the callback for when the connection to the server is established.

client.onConnectionEstablished = function() {};

MMS Client:
onConnectionClosed()

N/A

Sets the callback for when the connection to the server is closed.

client.onConnectionClosed = function() {};

MMS Client:
processReceivedData(srcIp, dataObject, dataValue)

N/A

Sets the callback for when the requested data are received.

client.processReceivedData = function(srcIp, dataObject, dataValue) {};

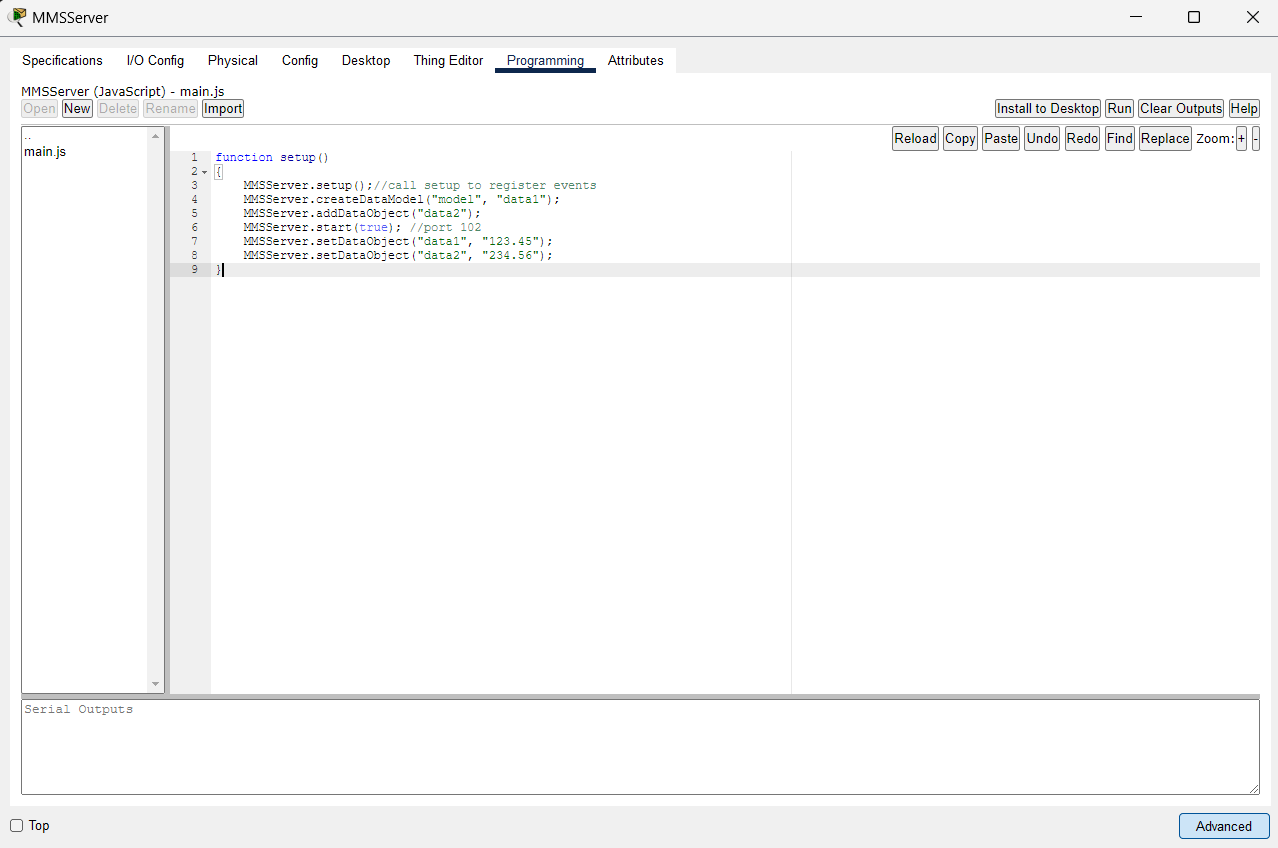

MMS Server:
setup()

N/A

Enables MMS server functionalities on the device.

MMSServer.setup();

MMS Server:
createDataModel(model, dataName)

bool

Creates a data model with the given data name.

MMSServer.createDataModel("model", "data1");

MMS Server:
addDataObject(dataName);

N/A

Adds a new datum to the existing model.

MMSServer.addDataObject("data2");

MMS Server:
setDataObject(dataName, dataValue)

N/A

Sets the data value to the given data name.

MMSServer.setDataObject("data1", "123.45");

MMS Server:
start(true)

N/A

Starts the MMS Server process.

MMSServer.start(true);

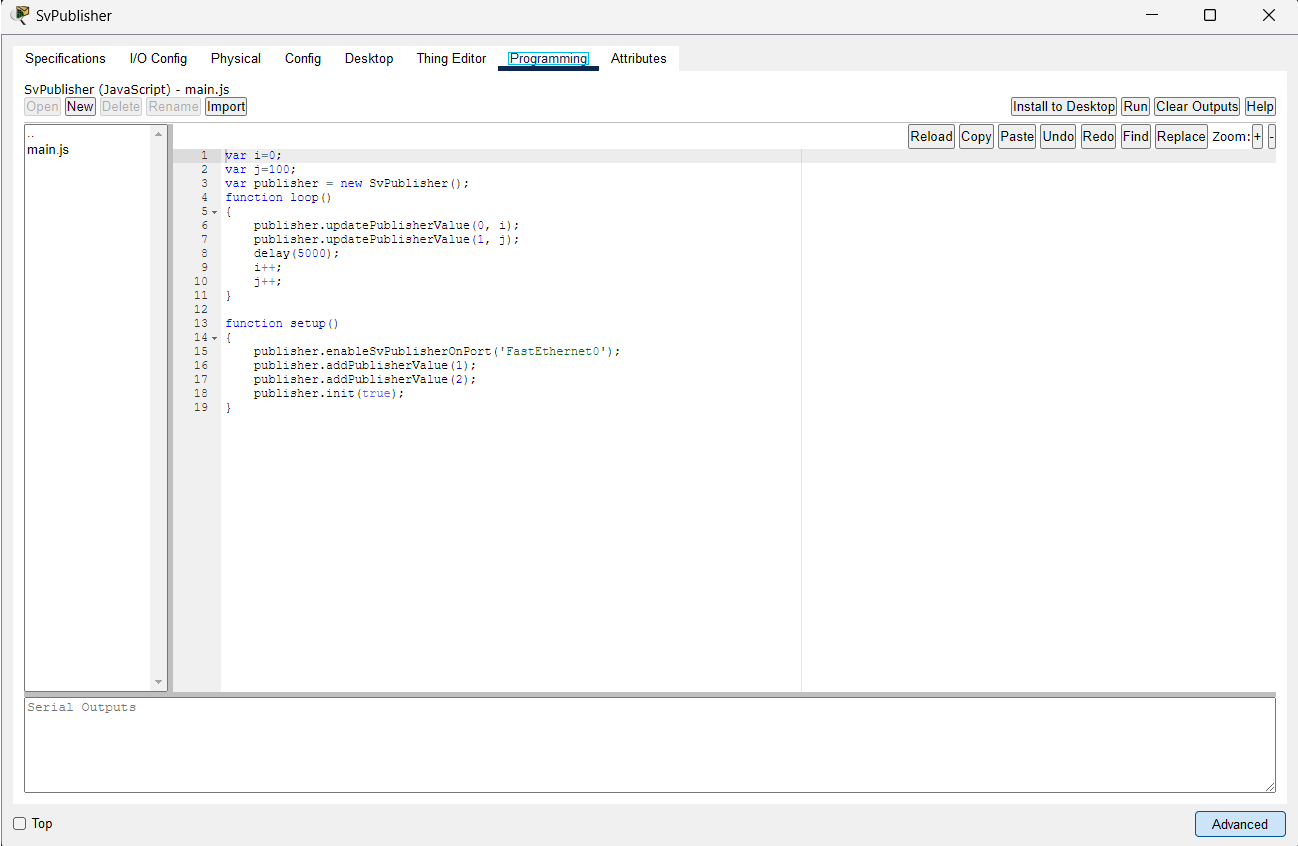

SV Publisher:
enableSvPublisherOnPort(portName)

bool

Enables SV publisher on portName

var publisher = new SvPublisher();
publisher.enableSvPublisherOnPort('FastEthernet0');

SV Publisher:
addPublisherValue(value)

N/A

Adds a value to be published to the subscribers. There is no limit on how many values can be added to the SV message.

publisher.addPublisherValue(1);

SV Publisher:
updatePublisherValue(index, value)

N/A

Updates the value at the index and publishes to the subscribers.

publisher.updatePublisherValue(0, i);

SV Publisher:
init(true)

N/A

Starts SV publishing

publisher.init(true);

SV Subscriber:
enableSvSubscriberOnPort(portName)

bool

Enables SV subscriber on portName.

var subscriber = new SvSubscriber();
subscriber.enableSvSubscriberOnPort('FastEthernet0');

SV Subscriber:
onSubscribed()

N/A

Sets the callback for when published data are received.

subscriber.onSubscribed = function() {};

SV Subscriber:
processReceivedData(src, data)

N/A

Sets the callback for when published data are received.

subscriber.processReceivedData = function(src, data) {};
