setup(portName, isController)

N/A

Enables PROFINET on the port with Device or Controller functionality.

Controller, Device

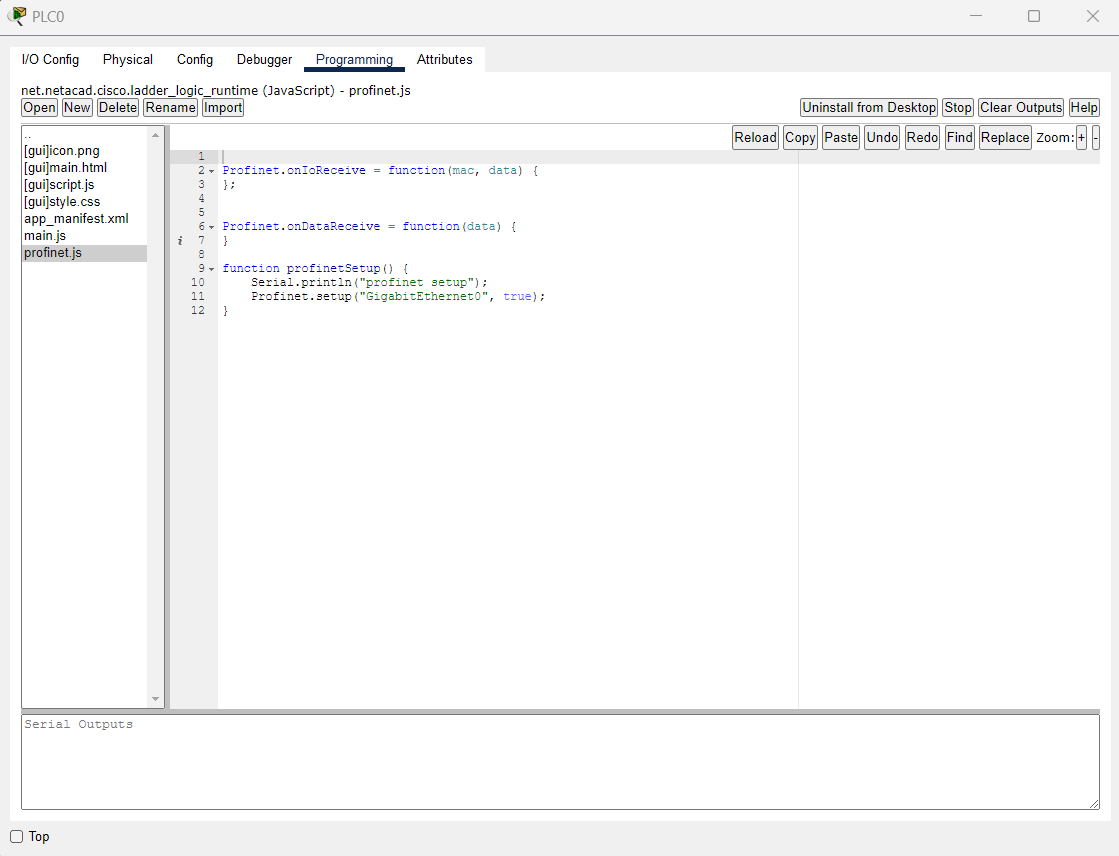

Profinet.setup("GigabitEthernet0", true);

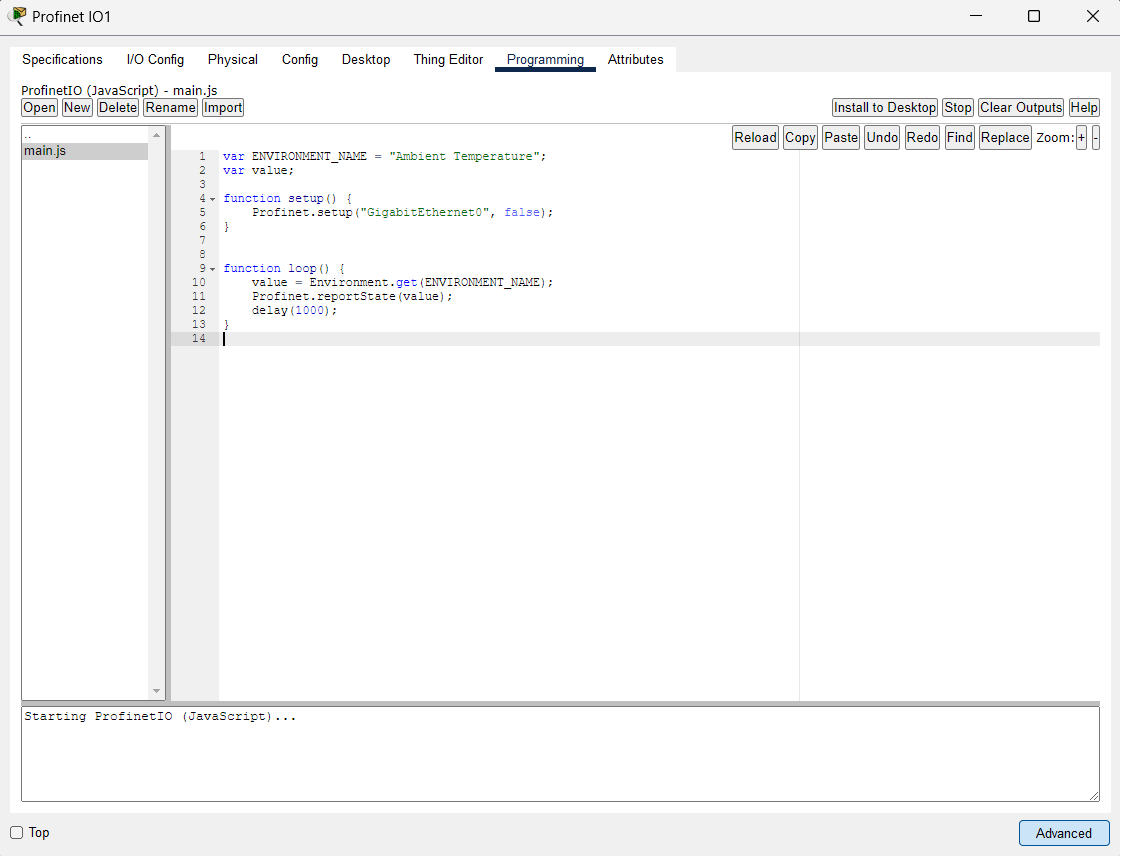

reportState(state)

N/A

Sets I/O value.

Device

var value = Environment.get("Ambient Temperature");
Profinet.reportState(value);

send(name, data)

N/A

Sends data to the named device.

Controller

var value = JSON.parse(args);
Profinet.send("IO1", value);

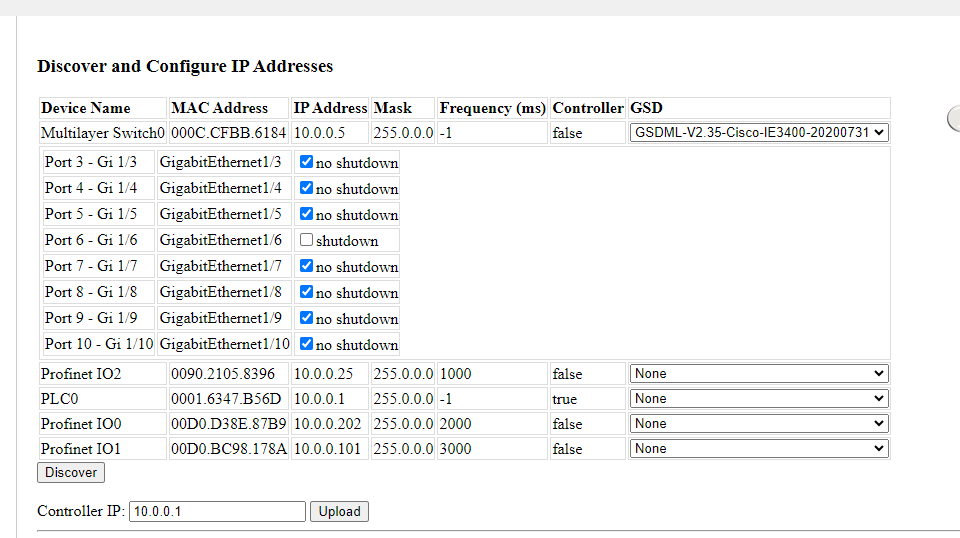

controller(ip, data)

N/A

Uploads PROFINET configuration from the workstation to the controller.

Workstation

var tableData = [];
var io1 = {};
io1.mac="0090.2105.8396";
io1.ip="10.0.0.25";
io1.mask="255.0.0.0";
io1.frequency=1000;
tableData.push(io1);
var io2 = {};
io2.mac="0001.6347.B56D";
io2.ip="10.0.0.25";
io2.mask="255.0.0.0";
io2.frequency=1000;
tableData.push(io2);
var data = {};
data.devices=tableData;
data.ip="10.0.0.1";
Profinet.controller("10.0.0.1", JSON.stringify(data));

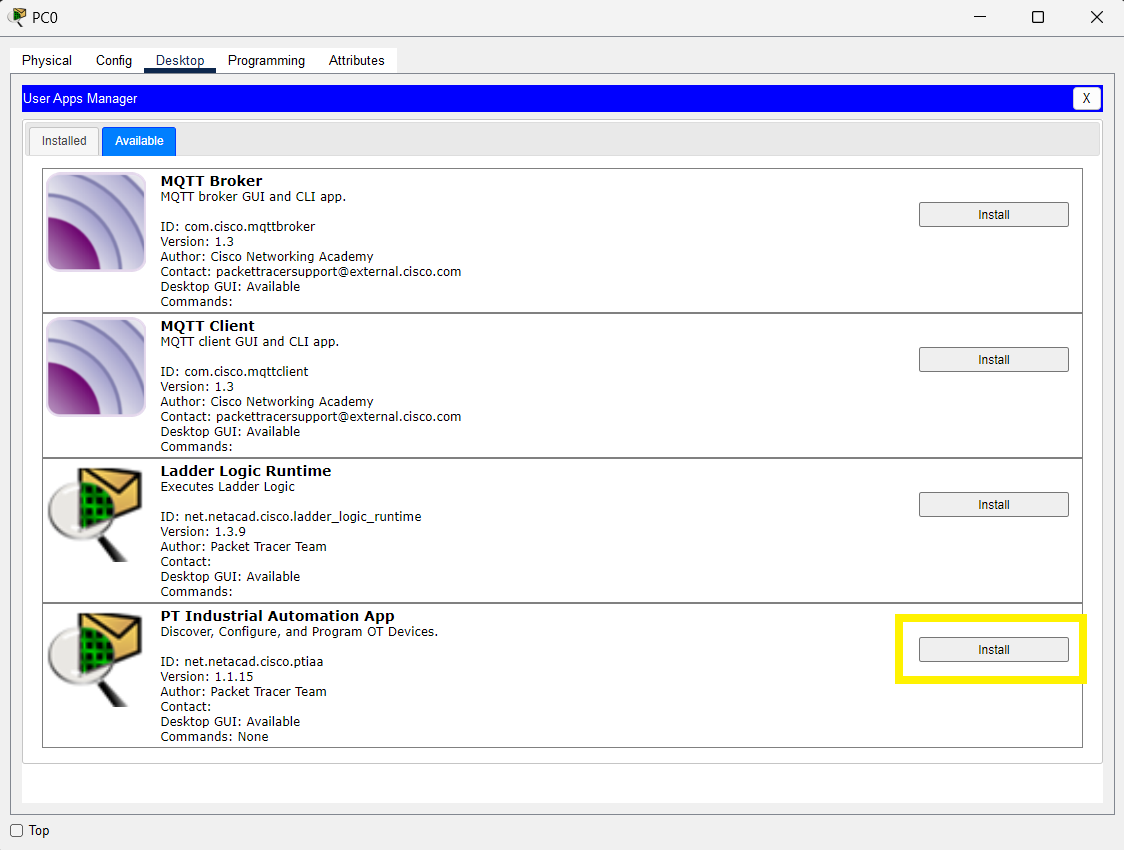

install()

N/A

Enables PROFINET on the device.

Workstation

Profinet.install();

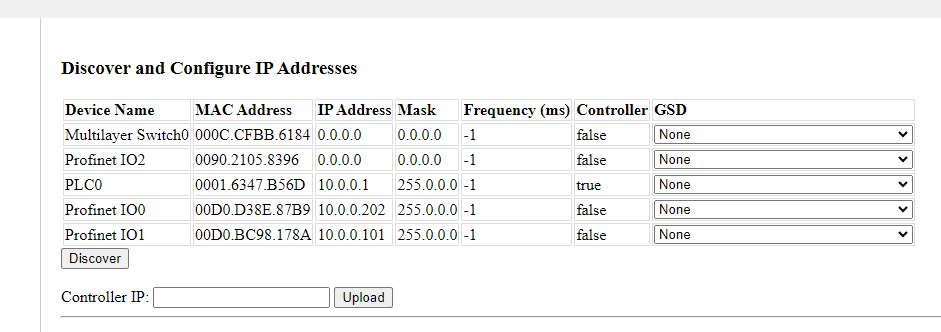

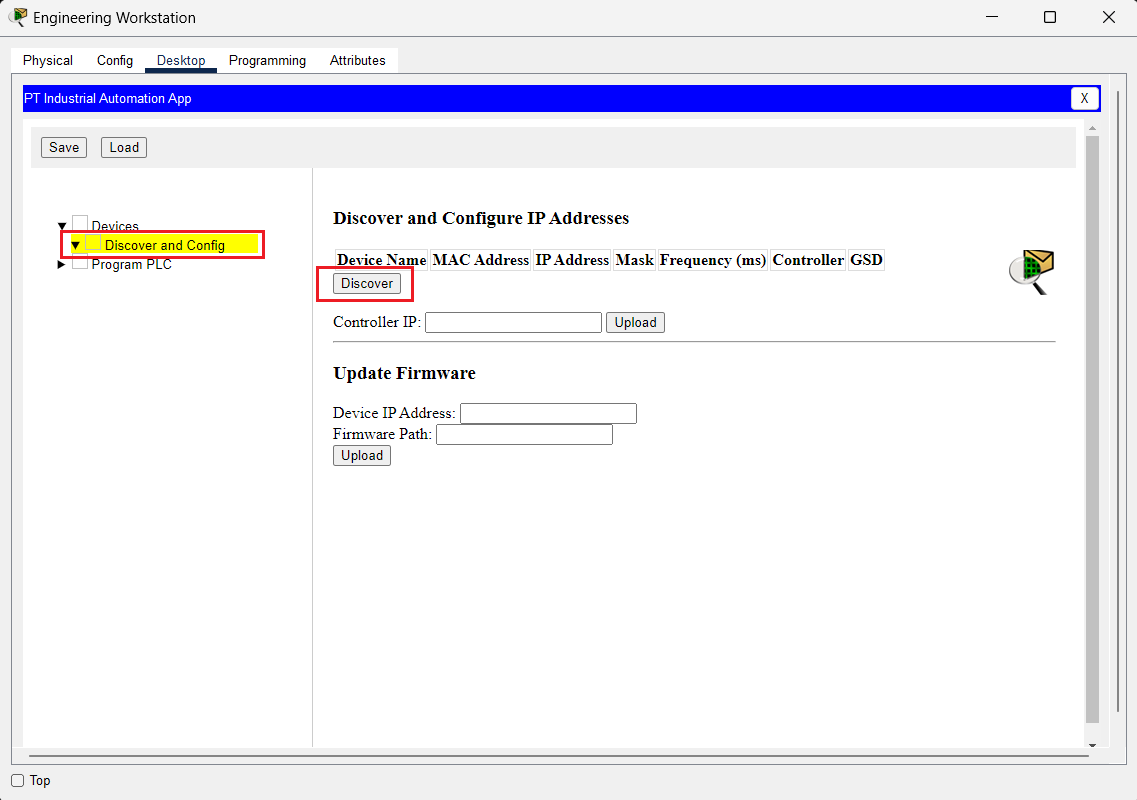

discover()

N/A

Performs PROFINET discovery.

Controller, Workstation

Profinet.discover();

ioDeviceCount()

int

Returns the number of devices known by the controller.

Controller, Workstation

var deviceCnt = Profinet.ioDeviceCount();

getIoDevices()

string

Returns information on all devices known by the controller in JSON string format.

Controller, Workstation

var deviceCnt = Profinet.ioDeviceCount();

getGsd(gsdFileName)

string

Returns GSD content in JSON string format.

Controller, Workstation

var gsd = Profinet.getGsd("GSDML-V2.35-Cisco-IE3400-20200731");

serialize()

byte array

Saves PROFINET information.

Controller, Workstation, Device

function serializeEvent() {
  try {
    var f = FileSystem.open("/profinet", File.WRITE);
    f.println(Profinet.serialize());
    f.close();
  }
  catch(e) {
    Serial.println("ERROR: serialize failed")
    Serial.println(e);
  }
}

deserialize(content)

bool

Loads saved PROFINET information.

Controller, Workstation, Device

function deserializeEvent() {
  try {
    if (!FileSystem.exists("/profinet"))
      return;
    var f = FileSystem.open("/profinet", File.READ);
    var dataStr = f.readln();
    Profinet.deserialize(dataStr);
  }
  catch(e) {
    Serial.println("ERROR: deserialize failed.")
    Serial.println(e);
  }
}

onDeviceUpdated

N/A

Sets the callback that is invoked when a device is discovered or updated.

Controller, Workstation

Profinet.onDeviceUpdated = function() {};

onIoReceive

N/A

Sets the callback that is invoked when I/O data is received.

Controller

Profinet.onIoReceive = function(mac, data) {};

onDataReceive

N/A

Sets the callback that is invoked when command data is received.

Device

Profinet.onDataReceive = function(data) {};
